5. Training the model: task orchestration with Luigi

In the previous chapter we’ve seen how to create a minimal app to run all the steps necessary to train our model. It turns out that, even though this approach is simple and fast, it may not be appropriate for production requirements, which may include much more complex task pipelines.

If we look back to our previous code we can identify at least three different steps:

  1. Data ingestion: We need to download the records from Carol to train/ validate the model.

  2. Model training: We use the data to train the model.

  3. Model evaluation: We generate basic metrics for our new model to check its performance.

    Notice that these tasks are already ordered in terms of dependency, given that Model evaluation depends both on the Data ingestion and Model training.

Once these tasks are split and chained, it becomes easier to debug which parts of the process went well, where it crashed and which steps are still pending. The main goal of the Luigi package (see docs here) is to orchestrate these tasks and make sure concluded steps from previous executions can be reused whenever it is possible.

This behaviour is specially usefull when dealing with long running tasks. Imagine, for example, that your data ingestion comprises loading and transforming 50M records, suppose this task takes one hour to process. Suppose also that training your model takes another five hours of intense GPU consumption. Now picture the bash crashing on the model evaluation step. If all parameters remain the same and you are using Luigi, only the final part, model evaluation, will need to be reprocessed, otherwise another six hours will be spent to reprocess the exact same results.

The way Luigi controls reexecutions is by the following rules:

  • Whenever a process concludes, all the relevant results are stored to the storage on the app.

  • If a previous execution is found with the exact same parameters just reuse its outputs.

Now let’s see how can we transform the example to take advantage of Luigi orchestration.

5.1. Adjusting the code

Let’s start by revising, organizing and adjusting our code. A good practice to organize code on Luigi-based apps is to have the following directories:

/app/
/app/flow/
/app/functions/

The app folder is were we store all of our code files. Inside this directory we have flow and functions, where we place the tasks (Luigi classes) and business logic respectively. In our case, as the logic is fairly simple, we can implement it directly on the flow source files.

The name of these folders are free of choice, but this is the naming convention along TOTVS Labs apps.

Organizing the code we should have something like the structure presented below. Apart from the main tasks’ source code we need to have the __init__.py files, to make sure code from different files can be shared, also we add the commons.py to handle all the App parameters and constants. We also added another task, deploy_model.py, to handle model deployment.

/app/
/app/flow/
/app/flow/__init__.py
/app/flow/commons.py
/app/flow/ingestion.py
/app/flow/train_model.py
/app/flow/evaluate_model.py
/app/flow/deploy_model.py
/app/functions/
/app/functions/__init__.py

The full source code is available at this github link, but a few snippets are worth being explained further. We will have a look at them at the following chapters.

5.2. Accessing App Settings

We can directly access the settings of our app (set on the UI) through the lines below. The example uses the pycarol.apps.Apps class to get the _settings dict, then it reads the settings values with passing as keys the same names configured on the UI.

# App parameters: reading from Settings
#-----------------------------------------
from pycarol.apps import Apps
_settings = Apps(Carol()).get_settings()
now_str = datetime.now().isoformat()
connector_name = _settings.get('input_connector')
staging_name = _settings.get('input_staging')

On our previous app we set input staging and connector hard coded on
the source code, this time we use it parameterized through the app
settings.

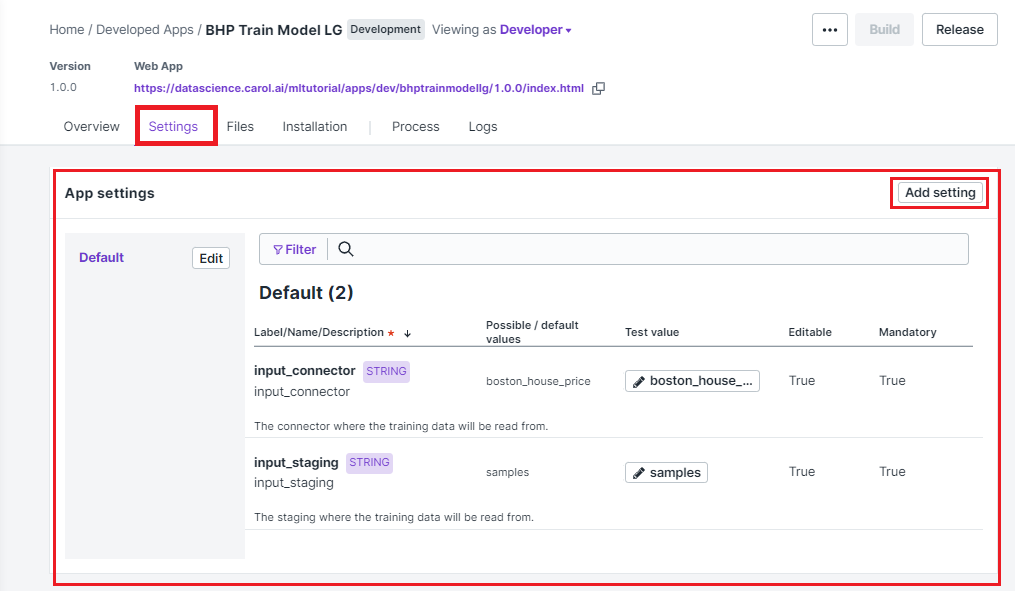

Figure 1 shows how the settings are configured on the user interface. Notice that the setting name must match exactly the key used on the code.

Figure 1: App settings configuration

Figure 1: App settings configuration

5.3. Creating a Luigi task

To exemplify how a task source file is composed on Luigi we will look closer to the Model Training step. The full source code is shown below:

import luigi
import logging
from pycarol.pipeline import inherit_list
from pycarol.pipeline.targets import PickleTarget
from pycarol import Storage
from sklearn.model_selection import train_test_split
from sklearn.neural_network import MLPRegressor

# Importing the task with basic configurations
# in place to use as baseline. This task will
# be extend to perform the business logic we
# want.
#-----------------------------------------
from .commons import Task

# This task depends on the ingestion outputs.
# We import the class here to add as a depen
# dency.
#-----------------------------------------
from . import ingestion

logger = logging.getLogger(__name__)
luigi.auto_namespace(scope=__name__)

# Adding the dependencies. This tasks will
# be blocked until the Ingestion outputs
# are available.
#-----------------------------------------
@inherit_list(
    ingestion.IngestRecords
)
class TrainModel(Task):

    # Recovering parameters from settings
    #-----------------------------------------
    model_l2regularization = luigi.Parameter()
    model_epochs = luigi.Parameter()

    # Selecting how the output will be persis-
    # ted after the processing.
    #-----------------------------------------
    target_type = PickleTarget

    def easy_run(self, inputs):

        # Retrieving outputs from previous task
        #-----------------------------------------
        data = inputs[0]

        logger.info(f'Spliting train/ test portions of the data.')
        X_cols = ["CRIM", "ZN", "INDUS", "CHAS", "NOX", "RM", "AGE", "DIS", "RAD", "TAX", "PTRATIO", "B", "LSTAT"]
        y_col = ["target"]
        X_train, X_test, y_train, y_test = train_test_split(data[X_cols],
                                                            data[y_col],
                                                            test_size=0.20,
                                                            random_state=1)

        logger.info(f'Training a MLP with {X_train.shape[0]} samples.')
        mlp_model = MLPRegressor(random_state=1,
                                 alpha=self.model_l2regularization,
                                 max_iter=self.model_epochs).fit(X_train, y_train["target"].values)

        logger.info(f'Making predictions for {X_test.shape[0]} records on test set.')
        y_pred_train = mlp_model.predict(y_train)
        y_pred_test = mlp_model.predict(X_test)

        logger.info(f'Saving model to storage.')
        stg = Storage(login)
        stg.save("bhp_mlp_regressor", mlp_model, format='pickle')

        # Returning the model and real/predictions
        # pairs for train and test (used on validation)
        #-----------------------------------------
        return (mlp_model, (y_train, y_pred_train), (y_test, y_pred_test))

A couple of things to pay special attention at the code:

  • The annotation @inherit_list is used to tell Luigi which tasks must be completed before starting the current one.

  • You can choose any name for the task, but it must inherit from pycarol.pipeline.Task.

  • The actual code to be executed (business logic) is implemented on the easy_run function. In this function you can access outputs from the previous tasks defined on @inherit_list through the parameter inputs, provided as a list. Whatever is returned by this function will be made available for the following tasks as well. Notice that in the example we use PickleTarget, which works for most of the situations, but if the output variables are not serializable, or have more efficient ways of doing it, have a look at the suported target types provided by Luigi.

  • If parameters are defined on the commons.py source we can load them through luigi.Parameter() command (different data formats are available, refer to the manual for more information). Notice that task will be triggered only if either these parameters have values changed or the outputs from previous tasks differ from previous executions.

    If, for any reason, you need the task to be reexecuted forcibly, no matter if all inputs remain the same, you can do it by importing the datetime parameter. That will cause the app to replicate files on the storage, which will never be cleaned. For this reason this approach is only recommended if the task doesn’t generates outputs or if they will be managed by third part apps.

5.4. Other files for a Luigi batch app

Once our code is ready, we just need to revise a couple of auxiliar files to make sure the app is built and executed as expected. The requirements.txt and manifest.json will be defined just like we did on the previous app, just revise them to make sure dependencies are updated.

On Luigi, even though we have our workload divided in tasks, we must add an entry point for the batch app, this entry point is the run.py source. The full code is shown below. This code shouldn’t change much between apps, the only attention point is to the get_tasks function, which should include only the target tasks, since all the chained tasks will executed as dependencies (such as ingestion and model training).

import sys
from time import time
from app.flow import commons, deploy_model
from dotenv import load_dotenv
load_dotenv('.env', override=True)

# Defining the list of all target tasks.
# Intermediate tasks will be processed as
# dependencies, so they don't need to be
# mentioned here.
#-----------------------------------------
def get_tasks():
    task_list = [deploy_model.DeployModel(**commons.params)]

    return task_list

# Make sure the task are executed only in
# the main thread.
#-----------------------------------------
if __name__ == '__main__':

    task_list = get_tasks()

    t0 = time()

    # Building and dispatching each task listed.
    #-----------------------------------------
    for task in task_list:
        commons.logger.debug(f'Starting task: "{task}')
        exec_status = commons.luigi.build([task], local_scheduler=True, workers=1,
                                          scheduler_port=8880,
                                          detailed_summary=True)

        commons.logger.debug(f'Finished {task}, Elapsed time: {time() - t0}')
        if exec_status.status.name == 'SUCCESS_WITH_RETRY' or exec_status.status.name == 'SUCCESS':
            continue
        else:
            commons.logger.error(f'Error: Elapsed time: {time() - t0}')
            sys.exit(1)

    commons.logger.info(f'Elapsed time: {time() - t0}')

The entry point should also be adjusted on the Dockerfile as well as follows:

...
CMD ["python", "run.py"]

Finally, we just need to adjust the logging.cfg (sample here) and luigi.cfg files, being the first for log standards and the second to define how the orchestration will behave. All the available configuration options on Luigi are listed on this section of the manual.

The final directory structure should be:

/app/
/app/flow/
/app/flow/__init__.py
/app/flow/commons.py
/app/flow/ingestion.py
/app/flow/train_model.py
/app/flow/evaluate_model.py
/app/flow/deploy_model.py
/app/functions/
/app/functions/__init__.py
Dockerfile
logging.cfg
luigi.cfg
manifest.json
requirements.txt
run.py

The deploy follows the same steps described on the minimal batch app. The final project is available on github.
